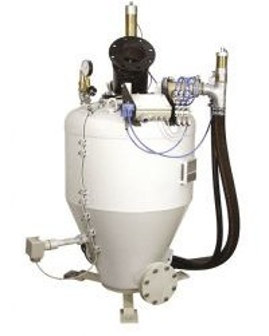

T-Type High Temp Dense Phase Conveyor

A dense phase conveyor for moving high temperature powders and materials, up to 450°F.

The Klein T-Type high temperature transporters are designed to serve two unique functions:

1. Move high temperature bulk materials, such as sand from reclamation systems, with product temperatures up to 450° F.
2. Move products using Klein’s unique PLUGFLO^® Dense Phase technology that minimizes material degradation and elbow maintenance. Unlike other dense phase systems, Klein’s system uses smart technology to prevent line purges unless initiated by a cycle change or user input. This saves expensive compressed air and minimized material degradation and elbow wear.

Convey up to 30 Tons Per Hour (TPH) efficiently and cleanly using low-velocity conveying speeds.

Advantages:

• Capable of moving high temperature materials and abrasive materials.
• Smart PLUG FLO^® technology prevents line purges after each conveying batch.
• Compressed air usage is 20-40% less than standard dense phase systems.
• To control operation, material level and vessel pressure are directly monitored.
• Manual and automatic operation is possible, making the Type-T transporter adaptable to all operating requirements.
• No moving parts in the product stream, resulting in negligible wear of parts and low maintenance requirements.

Common Applications:

• Sand Reclamation Transport
• Foundry Sand Reclaim Conveyor
• Hot Granular Products
• High Temperature Chemicals
