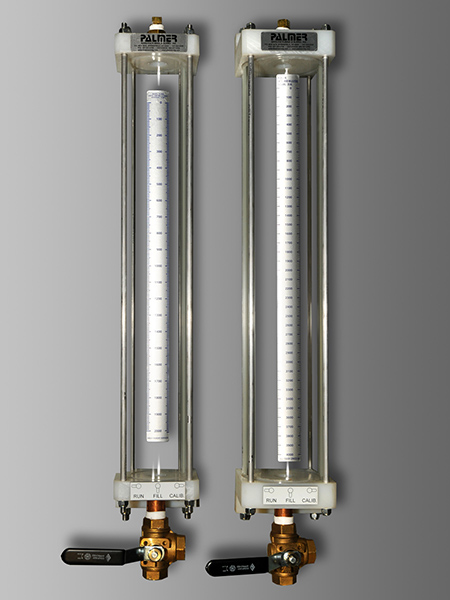

Flow Calibration Tubes

Palmer flow calibration tubes are a cost effective, beneficial, foundry efficiency tool. Flow calibration tubes offer:

Advantages

• Eliminate the need for scales, buckets, and gloves in calibration
• Calibrate continuous mixers without wasting binder (zero loss
  system)
• Calibration accomplished with one operator
• Measures actual binder flow to the mixer in operation
• Calibration is performed during the mold and core making process
  eliminating lost production time due to calibration
• Entire procedure takes less than 2 minutes
• Eliminates the normal mess of calibration
• No operator contact with resins
• Extremely accurate - less chance of error
• Trial resin samples are easily tested by using the flow calibration
  tubes as a mini resin storage tank without changing a single hose


Features

• Construction materials compatible with foundry resin systems
• Heavy duty sight glass gauge
• Ultra-high molecular weight polyethylene end caps
• Brass ball valve with Teflon seals for binders
• PVC ball valve with Teflon seals for acid catalysts
• All connections are either 1/2" or 3/4" NPT Standard Threads
• Sight glass easily cleaned or replaced as needed
• Sight glass scale calibrated in milliliters - 2% of full scale accuracy
